Tankless Water Heaters

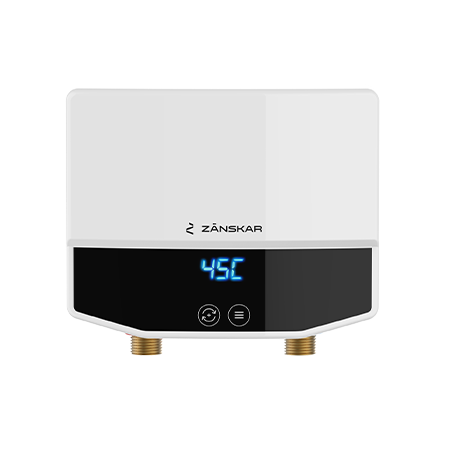

Zanskar Hotspring for Kitchen (5KW)
1 Phase Electronic
Overview :
The new generation of fully electronic Zanskar Hotspring Tankless Water Heater appliance
is compact in size and is perfect for use in the kitchen and installed under the sink in
any direction i.e 2-way installation. The appliance is made up of high strength ABS
splash-proof casing and a stainless steel heating element. It provides an unlimited
supply of hot water and is installed at the point of use.
Appliance shows temperature settings on your LED digital display and the direct
temperature setting can be done easily with a touch screen facility. It comes with an
automatic memory function that avoids repeated operation in case of power failure.
The appliance has a patented heating module system with electricity leakage protection,
anti-scalding, overpressure and overheat protection.
Product Features:
- Output models 7kw
- Output Model – 5kw
- Higher resistance to hard water
- Exact adjustment of desired water temperature
- Compact design: 198 x 160 x 98 mm (height / width / depth)
- 2 way easy installation – Up or Down 180 degrees
Specifications:
| Zanskar Hotspring for Bathroom | unit | HSTB7 |
|---|---|---|
| Rated Output | kw | 7 |
| Circuit breaker | A | 32 |
| Wire | sq mm | 4 mm2 |
| IP Rating | – | IP 25 |
| Max Pressure | bar | 6 Bar |
| Inlet Size | – | G 1/2” |
| Weight | kg | 4.6 |
| Dimension h x w x d | mm | 396*220*88mm |
| Colour | – | White |
Downloads:
| File Name | Download File | Share File |
|---|---|---|
| Zanskar Hotspring Tankless Water Heater | Download |
