Tankless Water Heaters

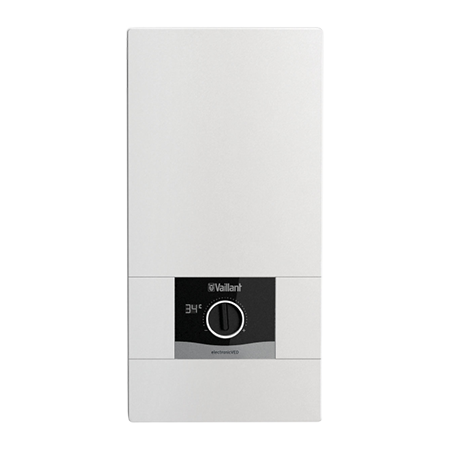

Vaillant ElectronicVED (13-18KW)

3 Phase

Overview :

The new generation of electric instant tankless water heaters is again striking proof of Vaillant´s leadership in innovation. The VED Electronic is extremely comfortable and efficient and tailored to individual demands and provides a superior experience for performance showering. It is an easy-to-operate, easy-to-install, and easy-to-service appliance.
The VED is electronically guided and the outlet temperature can be regulated in a step-less manner and stays constantly up to the performance limit. Any fluctuations in the water pressure are electronically balanced and the desired water temperature is adjusted at the temperature selector.

  • ElectronicVED with electrical performance adjustment, step-less temperature regulation, and output temperature stability up to the performance limit
  • Output models 13-18 kW
  • Flat design: 481 x 240 x 99 mm (height x width x depth)
  • Installation system Pro I for maximum service and installation ease
  • Adaptable to solar water heater system & heat pump for pre-warmed water for appliances up to 18 kW



Specifications:

electronicVED unit VED E 18
Rated Output kw 13-18
Circuit breaker A 32
Wire sq mm 6
IP Rating 25
Max Pressure bar 10
Inlet Size 1/2″
Weight kg 4.4
Dimension h x w x d mm 481x240x99
Colour white

Downloads:

File Name Download File Share File
Vaillant Brochure Download
Vaillant Electronic VED Specs and Dimensions Download
Vaillant ElectronicVED Installation and Operation Manual Download
Vaillant Warranty Card Download
