Tankless Water Heaters

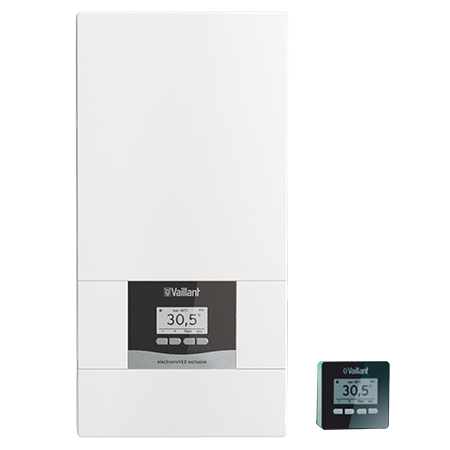

Vaillant ElectronicVED E Exclusive (18-24KW)
3 Phase
Overview :
The new generation of fully electronic Vaillant instant tankless water heater has a flat, elegant design and is made for luxury and performance showering for every bathroom. The VED exclusive shows energy and water consumption data on its MONITOR and its settings can be controlled via a remote control. It is the world’s first tankless water heater with integrated consumption data indication. The VED exclusive also has a trend indicator which enables you to estimate your yearly consumption. The VED exclusive works really well with renewable energy solutions such as solar or heat pump for pre heated water. The VED exclusive is truly one of the world’s most advanced tankless water heaters.
Product Features:
- Output models 18-24 kW
- EnergyMONITOR with consumption indication
- Exact adjustment of desired water temperature
- Exact adjustment of scalding protection
- Big illuminated graphical display with plain text menu
- Electronic power adjustment
- Exact temperature adjustment from 30 up to 60°C
- Flat design: 481 x 240 x 99 mm (height / width / depth)
- Easy to service thanks to System Pro I
- Adaptable to solar water heater system & heat pump for pre warmed water for appliances up to 24 kW
Specifications:
| electronicVED exclusive | unit | VED E 24 E | |
|---|---|---|---|
| Rated Output | kw | 18-24 | |
| Circuit breaker | A | 32 | |
| Wire | sq mm | 6 | |
| IP Rating | – | 25 | |
| Max Pressure | bar | 10 | |
| Inlet Size | – | G 1/2″ | |
| Weight | kg | 4.4 | |
| Dimension h x w x d | mm | 481x240x100 | |
| Colour | – | White | |
Downloads:
| File Name | Download File | Share File |
|---|---|---|
| Electronic VED Exclusive CAD | Download | |
| Vaillant Brochure | Download | |
| Vaillant Electronic VED Exclusive Specs and Dimensions | Download | |
| Vaillant ElectronicVED Exclusive Installation & Operating Manual | Download | |
| Vaillant Warranty Card | Download |
